Mitsubishi 2.5 Ton Heat Pump Split System Project
This project covered the installation of a Mitsubishi 2.5 Ton 17.8 SEER2 variable speed heat pump split system. The Super Brothers Technician installed a Mitsubishi outdoor heat pump condenser with model number SUZ-AA30NL and a Mitsubishi air handler with model number SVZ-AP30NL. The equipment was listed as ENERGY STAR equipment, with AHRI certificate number 215748461 tied to the matched system. The work included equipment delivery, old system removal, refrigerant disposal, new equipment placement, electrical upgrades, thermostat setup, startup testing, third-party Title 24 and HERS verification, permit handling, and final inspection readiness.
Outdoor Mitsubishi Heat Pump Installation

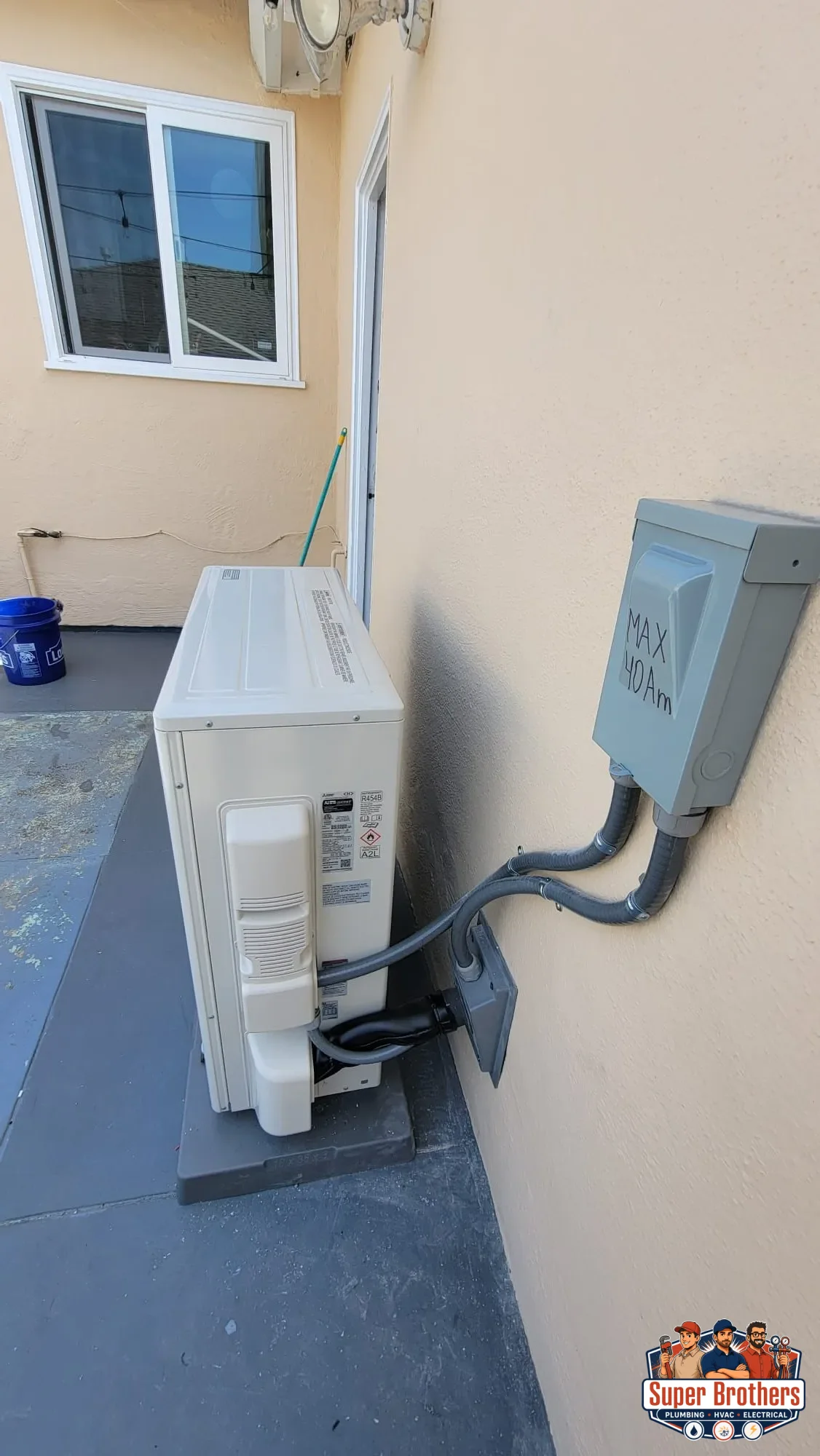

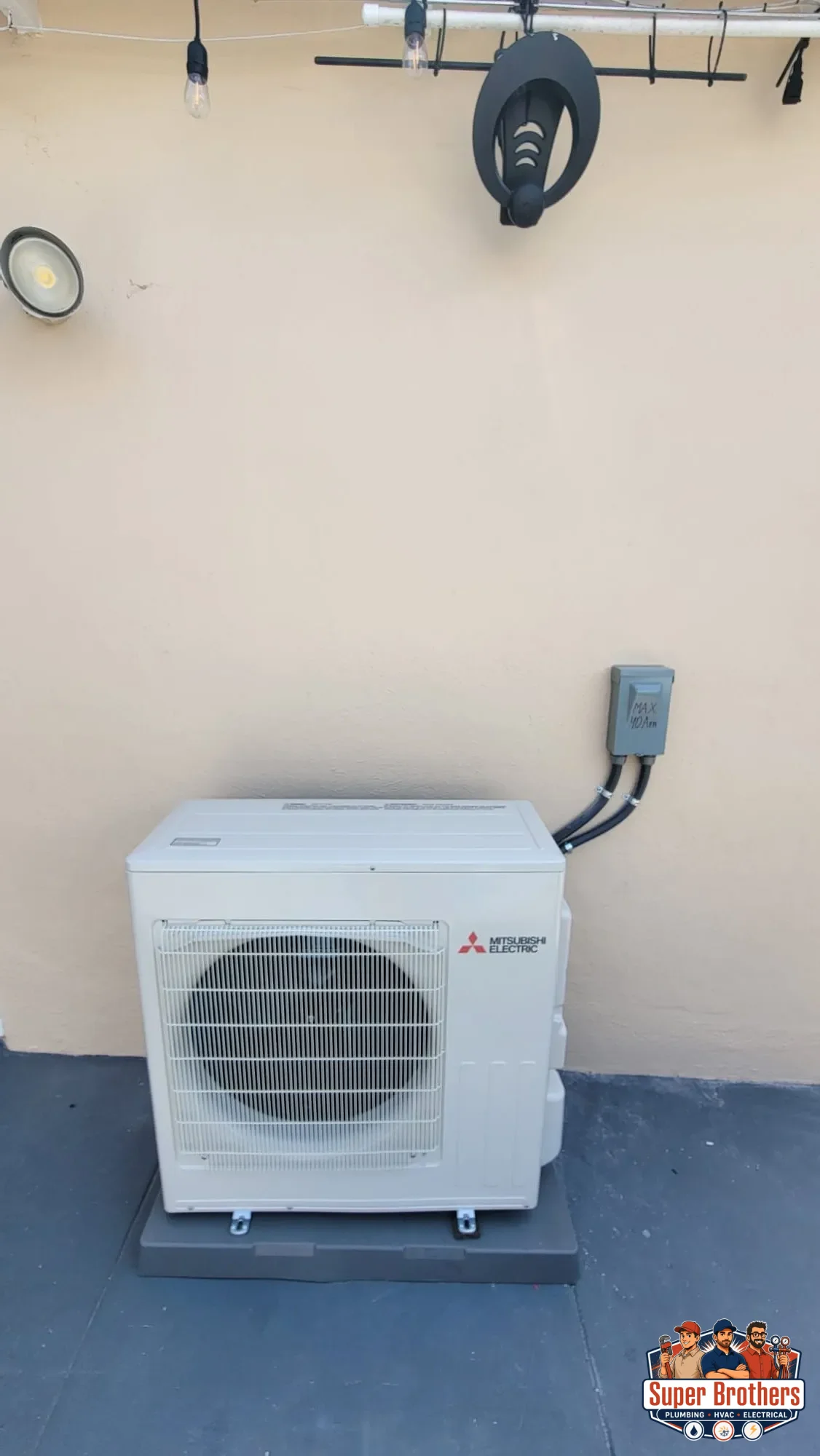

The outdoor Mitsubishi condenser was set on a new condenser pad along the exterior wall. The Super Brothers Technician routed the electrical whip into the unit and connected it to the new wall-mounted disconnect. The photo shows the condenser sitting level, with the line set and electrical connections entering the side of the unit. This part of the installation matters because the outdoor heat pump handles the main heating and cooling exchange for the home through the refrigerant circuit.
New Electrical Disconnect and High Voltage Feed
The project included a new fusible disconnect box, a new breaker, and new high-voltage wiring to the outdoor unit. The exterior photo shows the disconnect labeled for a maximum 40 amp circuit near the Mitsubishi condenser. The Super Brothers Technician completed the electrical connections needed for the new heat pump system and arranged the conduit neatly along the wall. AHRI keeps a public certified product performance directory that helps verify matched HVAC equipment ratings, which is useful when an AHRI certificate is included with a project.
Indoor Air Handler Installation

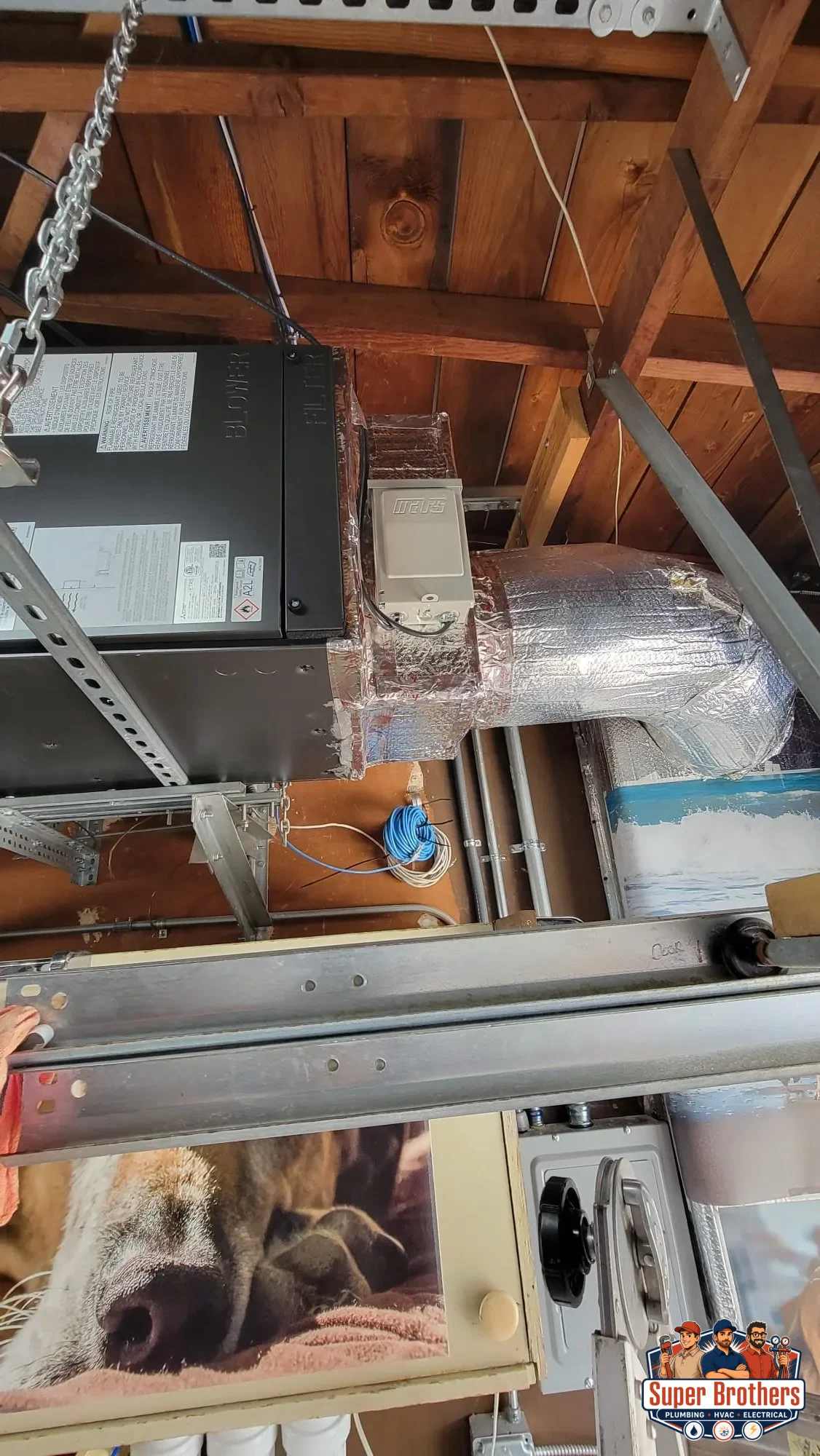

The indoor Mitsubishi SVZ-AP30NL air handler was installed overhead in the garage area. The photo shows the black air handler cabinet supported above the work area, with the duct transition sealed and insulated at the connection. The Super Brothers Technician tied the new air handler into the duct system so conditioned air could move through the existing home layout. The overhead location kept the equipment accessible for service while using the mechanical space already available in the garage.
Duct Transition and Air Handler Support
The wider garage photo shows the suspended air handler, wrapped duct transitions, ladder access, and nearby work area. The duct sections were insulated at the new connection points so the air handler could deliver air through the intended duct path. The Super Brothers Technician also included the emergency drain pan and cutoff switch work listed in the installation scope. DOE explains that air-source heat pump systems use indoor and outdoor components to move heat through refrigerant operation, and its air-source heat pump guidance gives homeowners a plain background on how these systems heat and cool a home.
Variable Speed Heat Pump Operation
This Mitsubishi system uses variable speed heat pump technology, so the equipment can adjust output during normal heating and cooling calls. The system can run at lower output when the home needs a smaller amount of conditioning, then increase capacity when the load rises. That kind of operation can help with steadier temperatures, longer run cycles, and quieter operation during many parts of the day. ENERGY STAR explains that heat pump systems provide heating and cooling from the same equipment type, and its heat pump resource also notes the importance of proper system selection and installation.
Mitsubishi Thermostat Setup
The project included installation of the new Mitsubishi thermostat and setup of the control settings. One photo shows the Mitsubishi Electric wall controller displaying the indoor temperature and humidity reading. Another photo shows the previous Honeywell thermostat, which documents the control replacement during the project. The Super Brothers Technician completed the thermostat setup during startup so the homeowner could operate the new heat pump from the correct Mitsubishi control.
Refrigerant Lines and Drain Safety
The scope included new refrigerant lines and pipe cover where needed for the installation. The line set connects the outdoor SUZ-AA30NL condenser to the indoor SVZ-AP30NL air handler, allowing the heat pump to move heat in cooling mode and heating mode. The Super Brothers Technician also included a new P-trap with a secondary cutoff switch and a new emergency drain pan with an emergency cutoff switch. Those parts matter because an indoor air handler can produce condensate during cooling operation, and the system needs protection if water backs up or drains poorly.
Energy Star Equipment and AHRI Certificate
The installed equipment was listed as a Mitsubishi 2.5 Ton 17.8 SEER2 variable speed heat pump system. The project information included ENERGY STAR equipment status and AHRI certificate number 215748461. The AHRI number gives the homeowner a way to reference the matched condenser and air handler combination used for the installation. This is helpful for project records, rebate paperwork, code documentation, and future service notes because it ties the installed equipment to a rated combination.
Title 24, HERS Testing, Permit, and Inspection
The project included Title 24 and HERS testing through a third-party company. That verification helps confirm the energy-related installation items required under California’s compliance process. The California Energy Commission provides public information about the HERS and Energy Code compliance process, which gives homeowners context for the testing step listed in this project. The scope also included permit and inspection from the city or county, with a building inspector reviewing the completed work after installation.
Removal of the Old System
The quote included removal of the old HVAC system and disposal of the old refrigerant. That step has to be handled correctly because refrigerant must be recovered during equipment replacement. The Super Brothers Technician removed the previous equipment as part of the full installation scope before the new Mitsubishi system was placed and connected. The finished project gives the homeowner a documented change from the prior HVAC setup to the new 2.5 Ton heat pump split system.
Startup and Performance Testing
After installation, the Super Brothers Technician completed startup and system performance testing. The startup process included checking thermostat response, confirming system operation, and reviewing the equipment after the electrical and refrigerant work were completed. The indoor and outdoor photos show the finished installation from the main service points. This final step matters because the system needs to run correctly before closeout, inspection, and normal homeowner use.
Project Result
The completed job replaced the previous HVAC setup with a Mitsubishi 2.5 Ton 17.8 SEER2 variable speed heat pump split system. The installation included the outdoor condenser, indoor air handler, new thermostat, new electrical disconnect, high-voltage feed work, refrigerant line work, drain safety components, startup testing, Title 24 and HERS verification, permit handling, and inspection readiness. The Super Brothers Technician documented the project from the equipment side and the control side so the homeowner has a clear record of the installation. The finished system gives the home a modern Mitsubishi heat pump setup designed for heating and cooling through the ducted indoor air handler.
