El Dorado Hills HVAC Contactor Repair

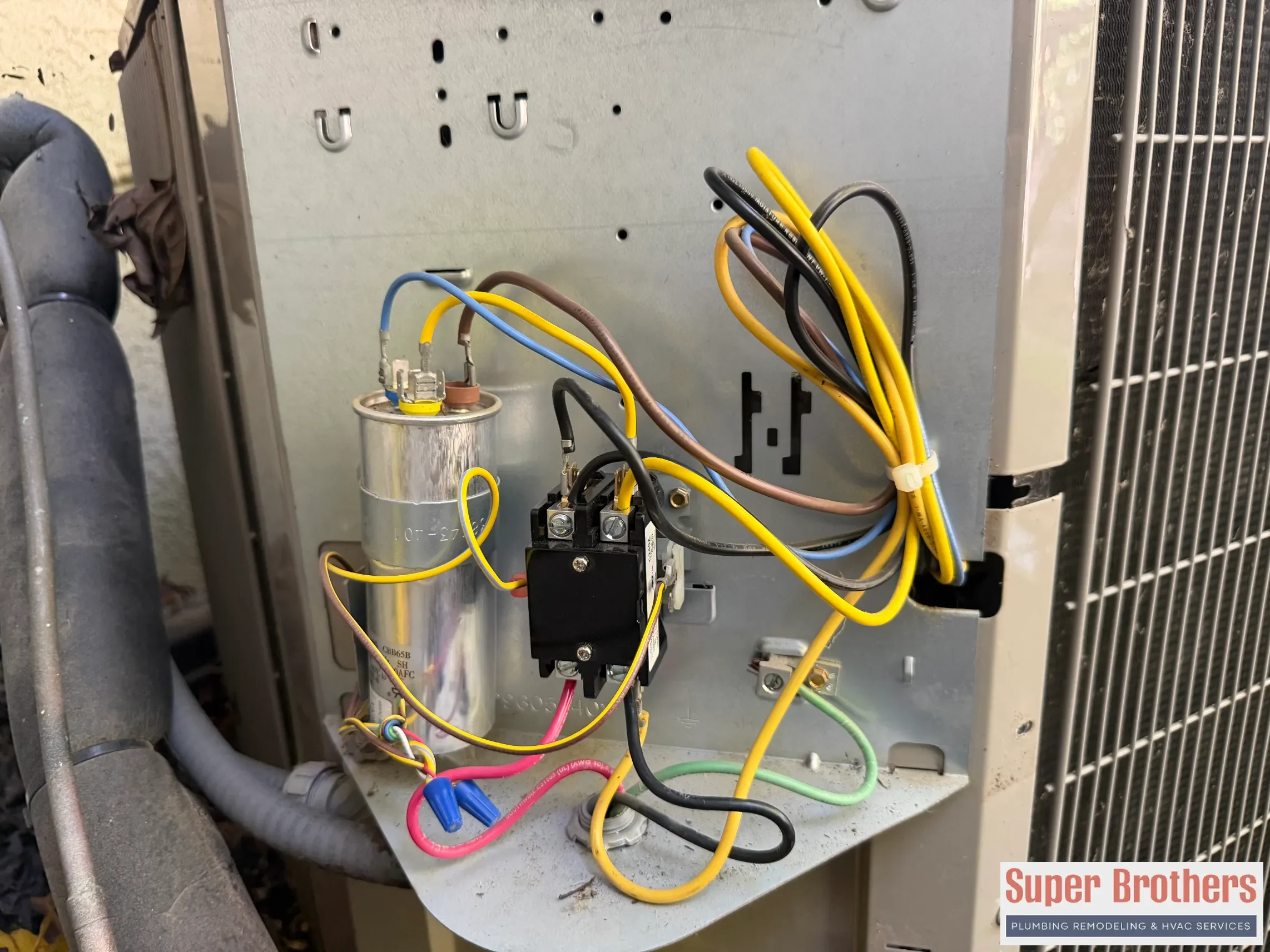

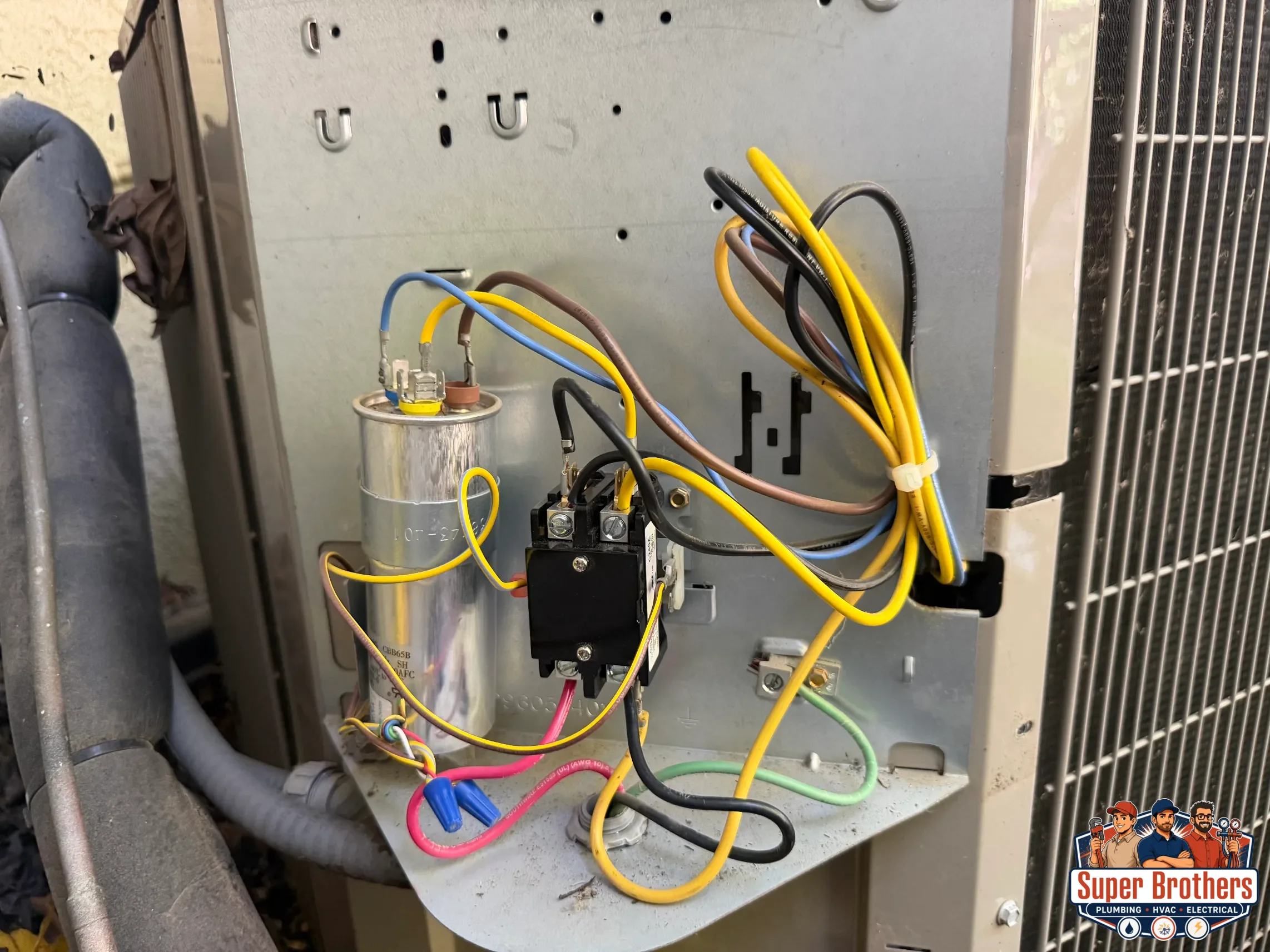

The homeowner called for an air conditioner that was not responding correctly at the outdoor unit. On arrival, the technician started with the cooling call from the thermostat and then moved outside to the condenser cabinet. The open panel photo shows the electrical compartment with the run capacitor, contactor, control wiring, and ground connection visible. That area matters because a weak or burned contactor can stop the compressor and fan from engaging even when the thermostat is asking for cooling.
Confirming the Cooling Call Inside the System

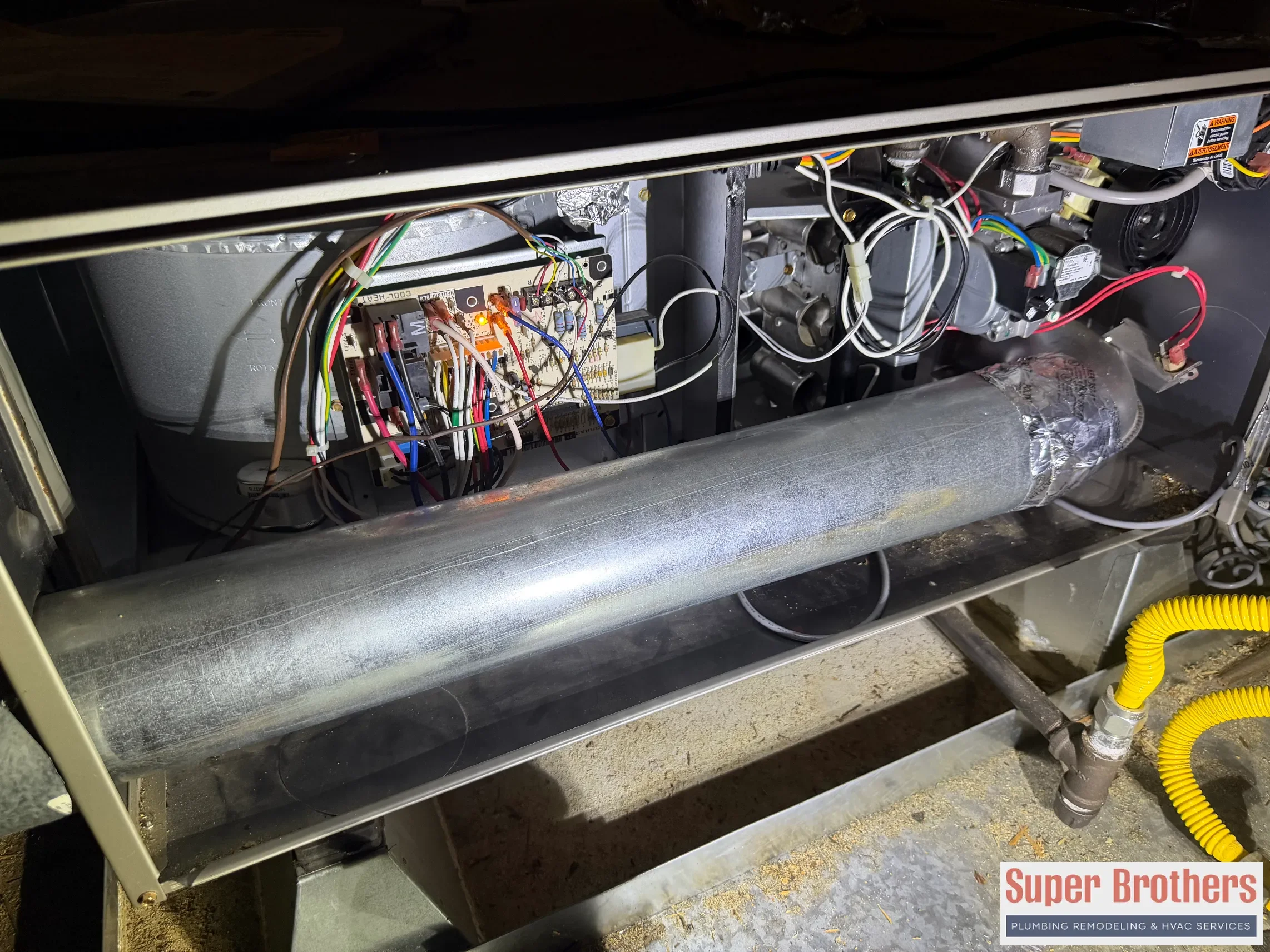

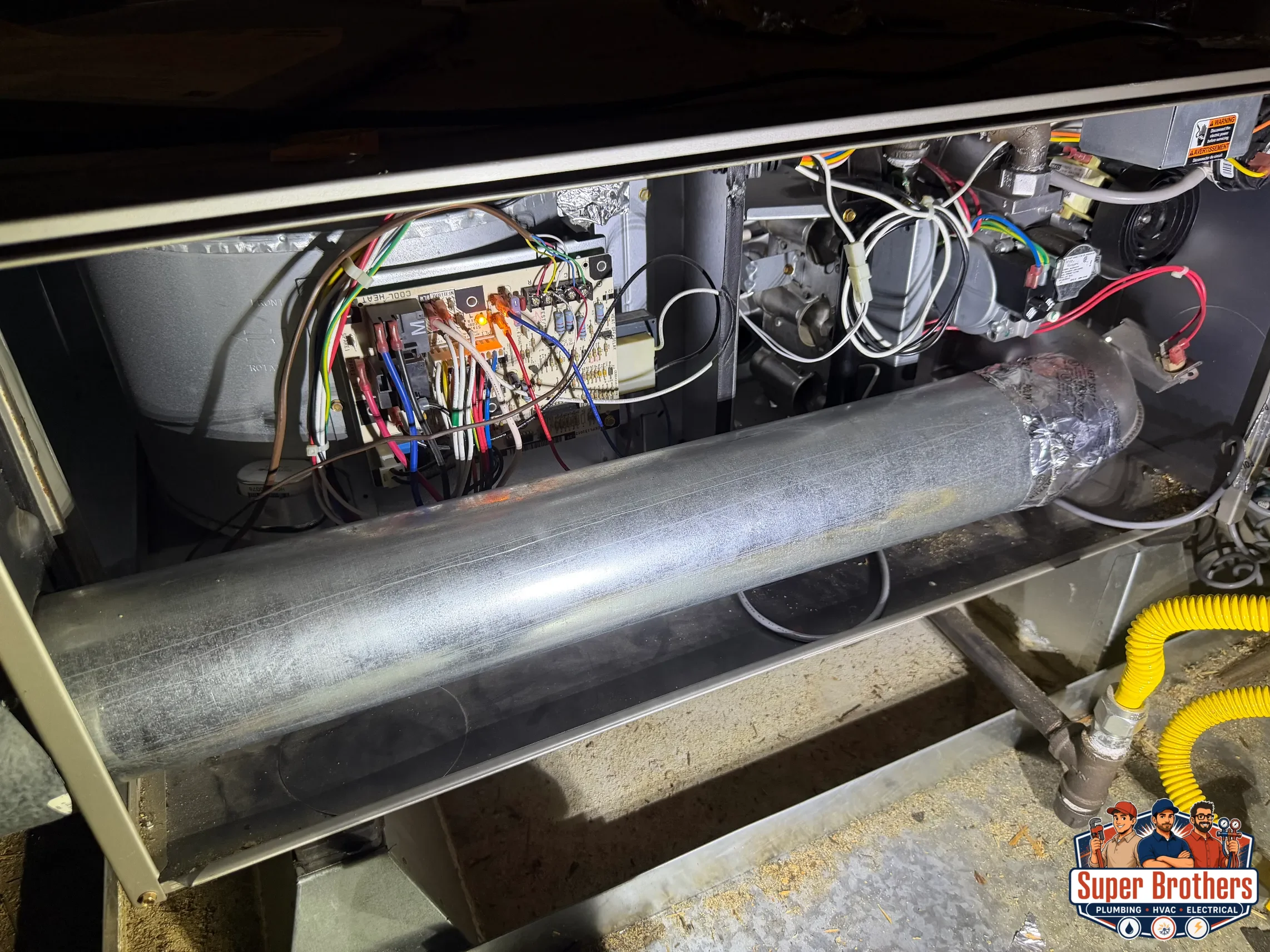

The technician did not start by guessing at parts. The indoor equipment was checked so the repair could be tied back to the actual signal coming from the home. In the furnace compartment photo, the control board is visible with the cabinet open and wiring exposed for testing. That step helps separate a failed outdoor contactor from a thermostat issue or a loose low-voltage wire before the outdoor repair is treated as the only fault.
Finding the Failed Contactor
At the condenser, the contactor was the focus because it is the switch that sends high voltage to the compressor and outdoor fan. Bad contactor contacts may be visibly burned, or the coil may fail to pull the switch in when the thermostat sends a signal. The technician inspected the contactor terminals and the nearby capacitor connections before changing the failed electrical part. AHRI’s homeowner guidance says a technician should verify the electric control sequence and inspect electrical terminals, which matches the work shown in this condenser cabinet.
Repairing the Outdoor Unit

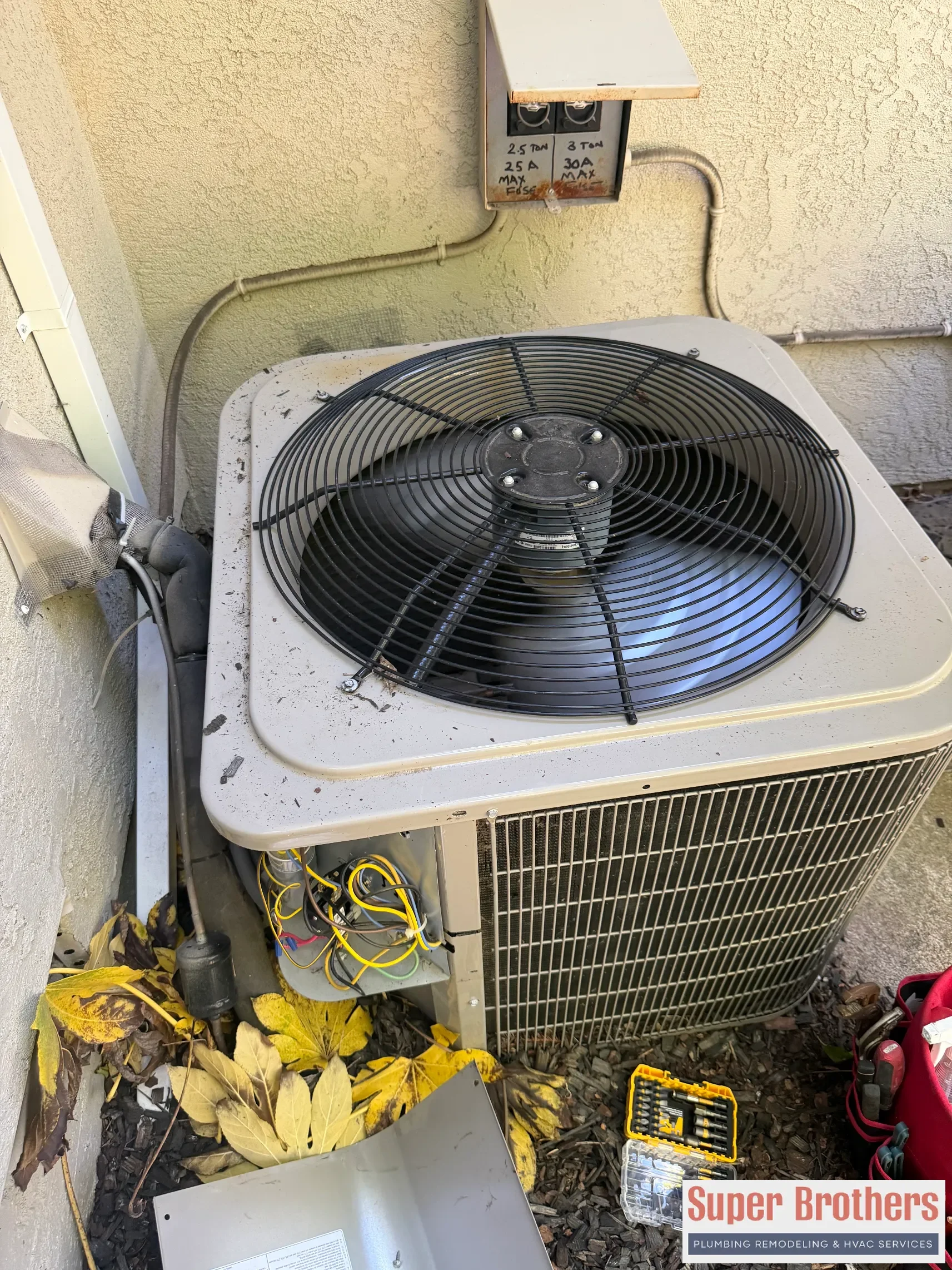

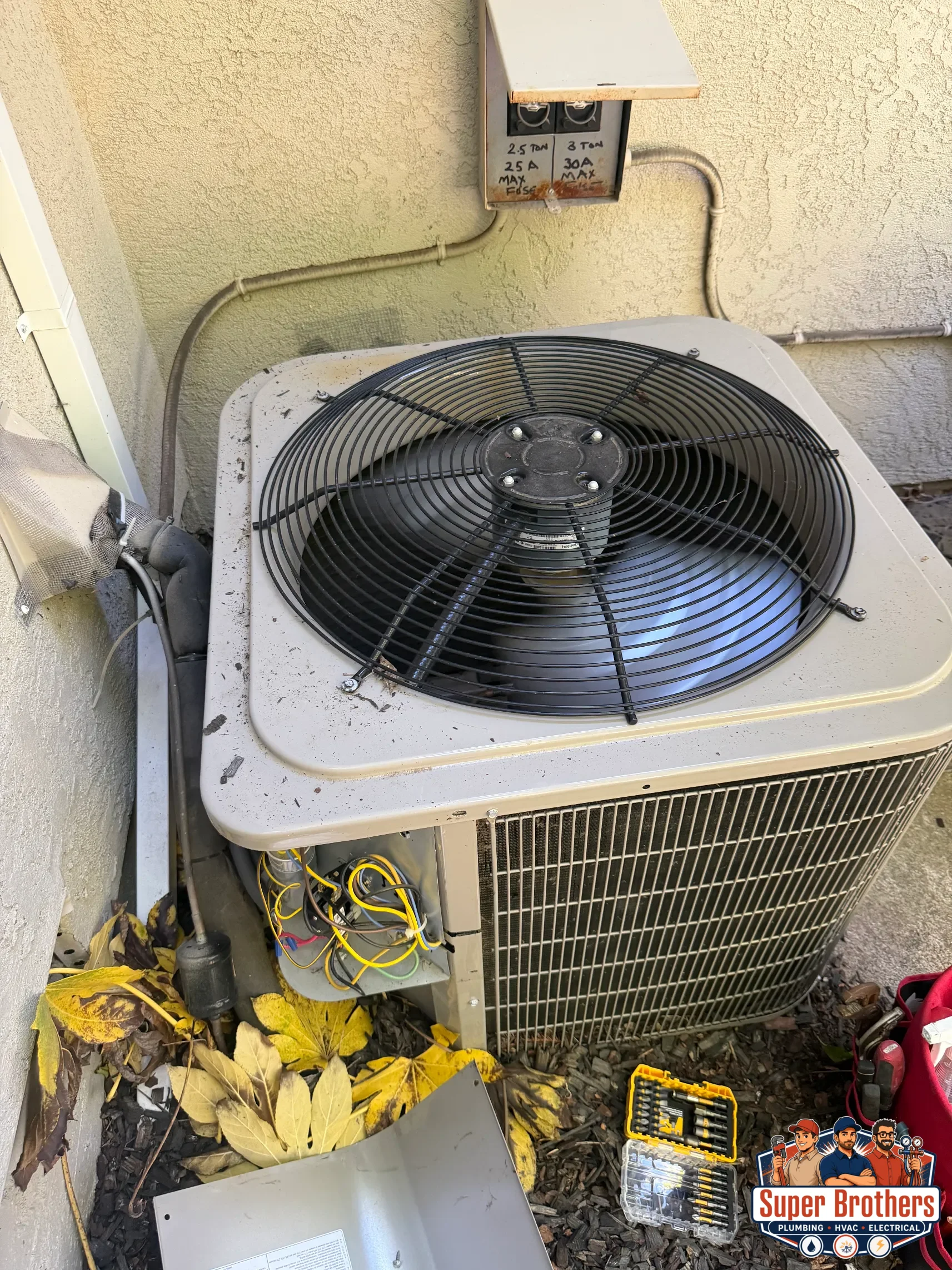

The failed contactor was replaced in the condenser electrical compartment. The wiring was returned to the correct terminals and the low-voltage leads were kept away from sharp cabinet edges. After the panel work, the outdoor fan was run to confirm that the condenser responded to the cooling demand. The wide outdoor photo shows the system opened for service with the fan section and service tools nearby, which gives a useful view of the work location.
Checking the Attic Furnace Side

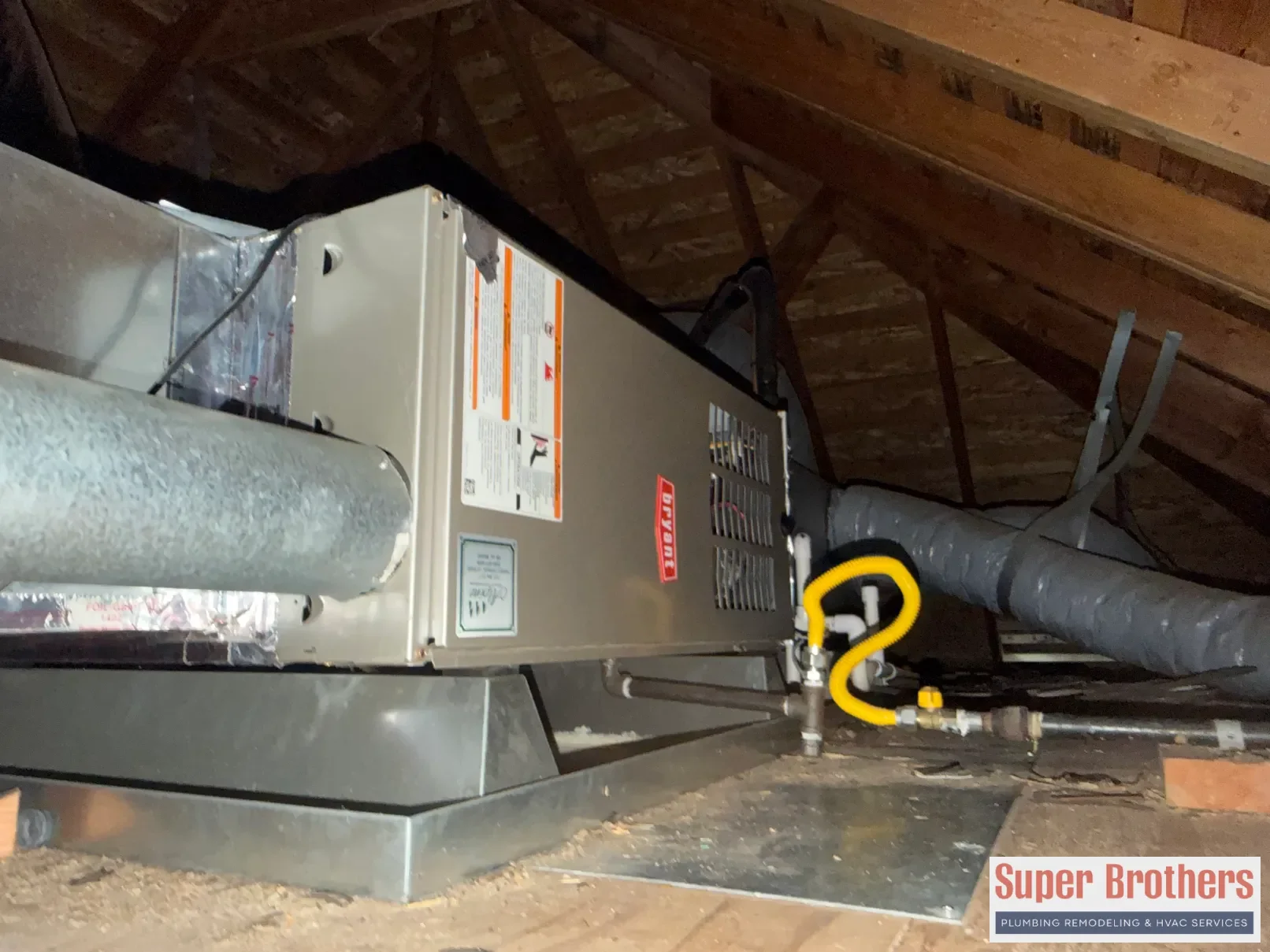

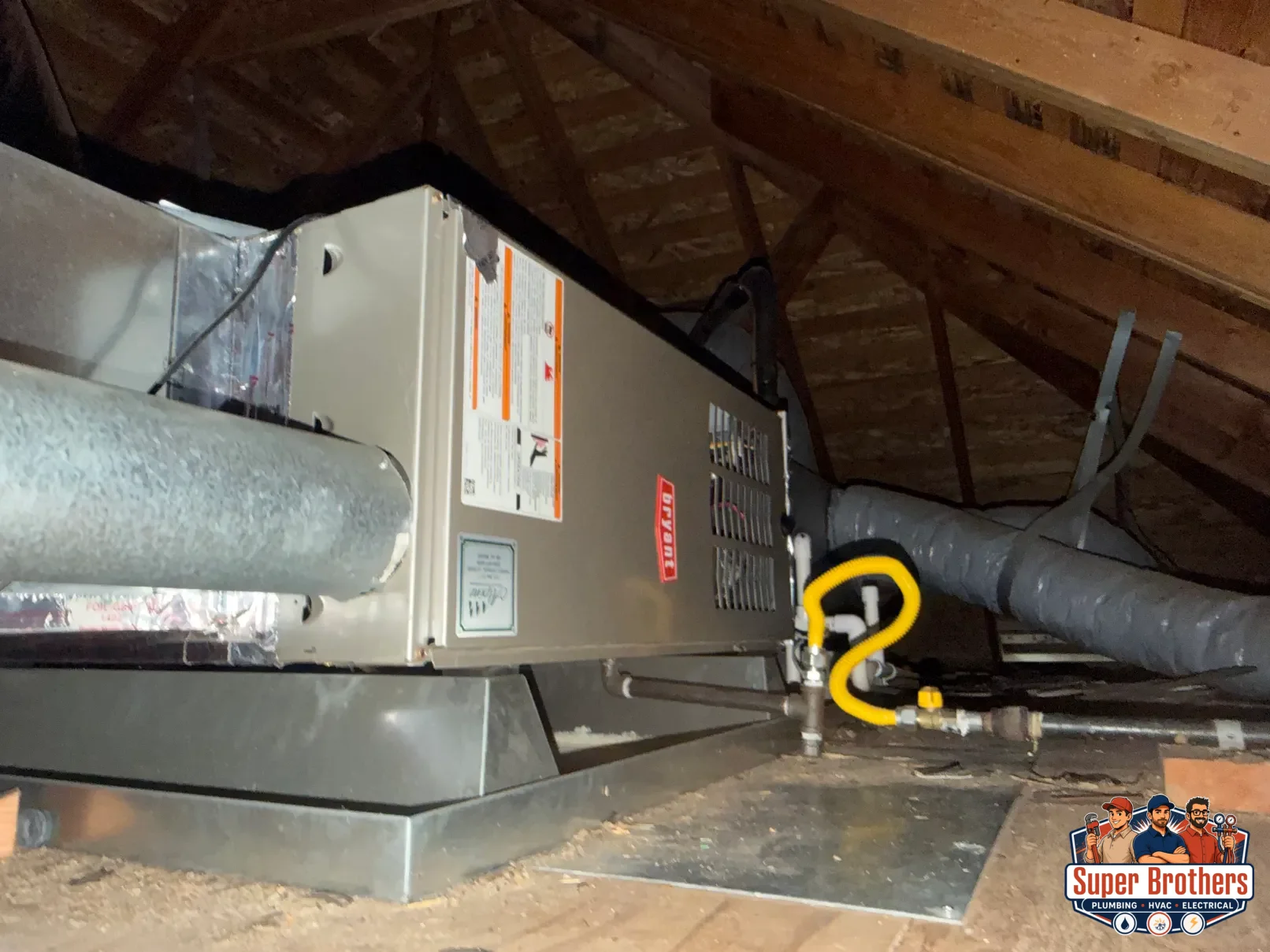

This system also has an attic furnace section tied into the cooling side. The technician checked that equipment because a contactor repair still needs indoor airflow and control wiring to cooperate. The attic photo shows the Bryant furnace and duct connection, with the gas line and platform visible in the service area. ENERGY STAR recommends regular filter attention and yearly HVAC tune-ups through its heating and cooling efficiency guidance, which is useful when equipment is already open for service.
Testing From the Thermostat

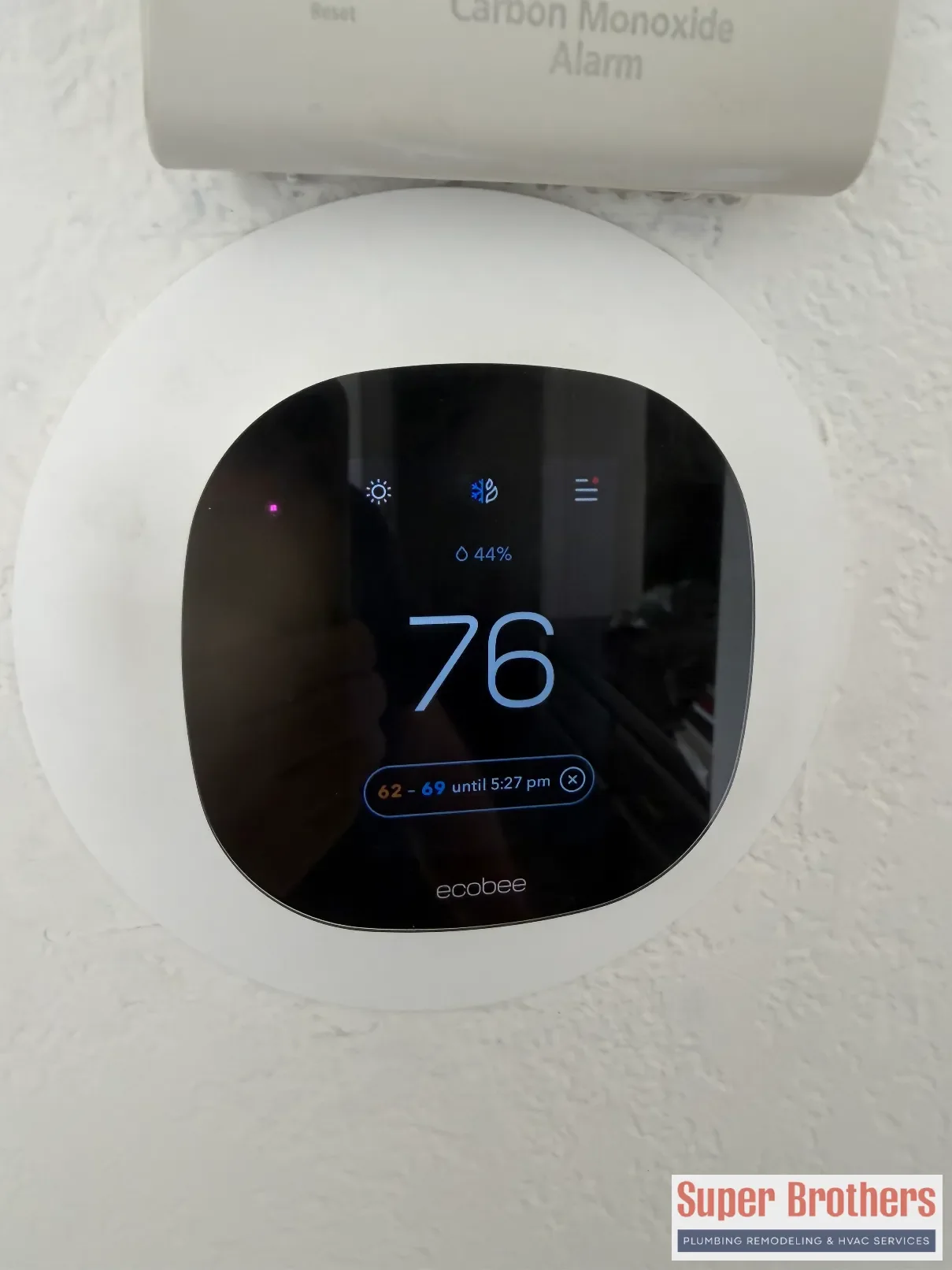

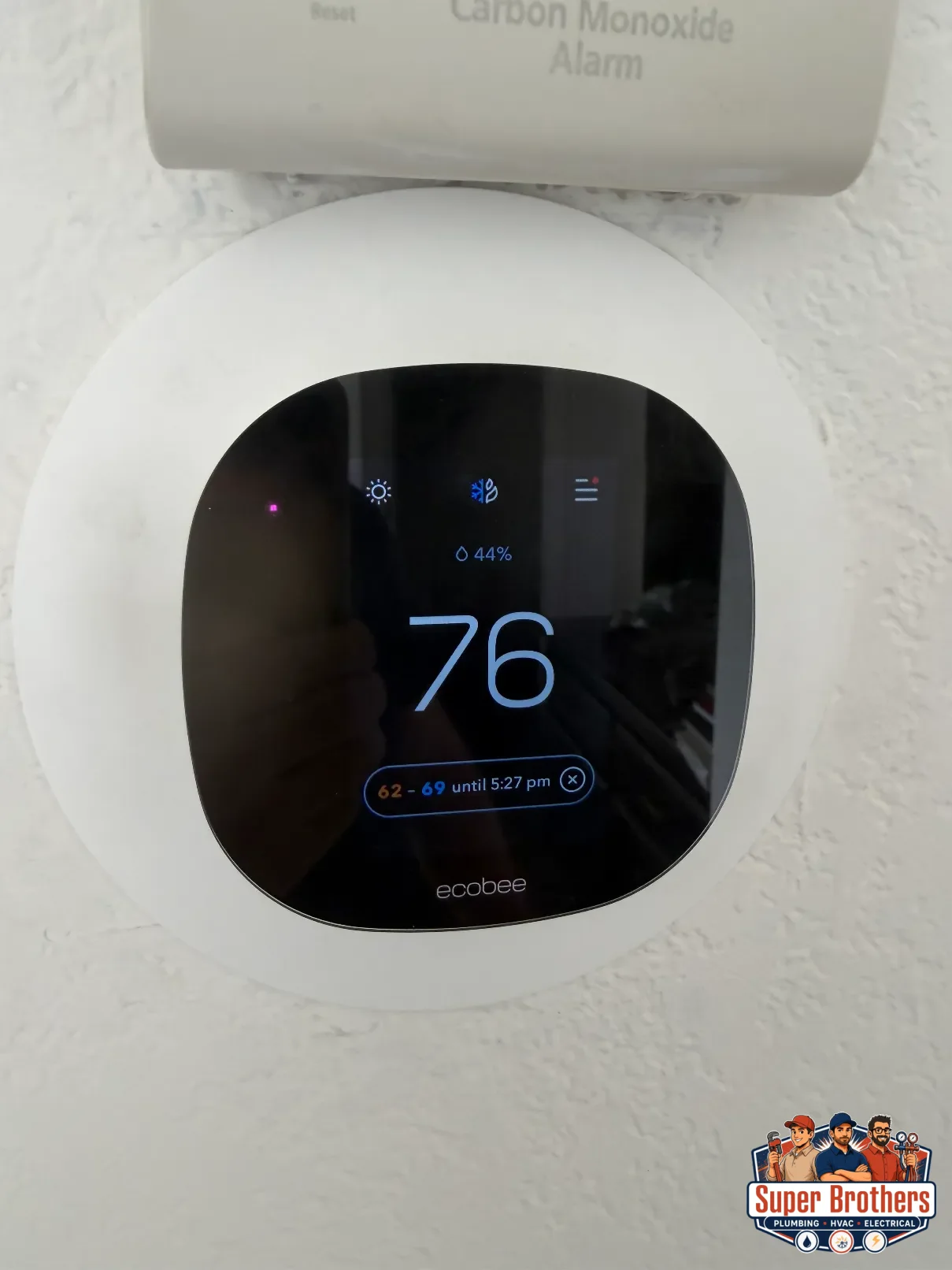

The Ecobee thermostat was used to call for cooling after the outdoor repair was completed. The display shows a cooling range and indoor humidity reading, which gave the technician a live point of reference inside the house. A thermostat photo by itself does not prove every part of an HVAC system is healthy. Here, it supports the service sequence because the indoor control signal and outdoor condenser operation were checked together before wrapping up.
What This Means for the Homeowner
A contactor is a small part, but it carries the load that turns the outdoor equipment on. In El Dorado Hills heat, repeated starts can wear the electrical contacts down over time. For this job, the repair stayed focused because the cooling call reached the outdoor equipment and the failed switching component was handled directly. ENERGY STAR also has homeowner guidance on maintenance items a contractor should check, including starting cycle checks and safe operation.
Final Result of the Contactor Repair
After the contactor repair, the outdoor condenser was able to kick on from the thermostat call. The technician confirmed the electrical compartment and thermostat response before closing the visit, with the indoor control side checked during the process. The job shows why AC diagnostics should start with the control path before assuming the whole condenser has failed. For homeowners in El Dorado Hills, a failed contactor can look like a major breakdown from inside the house, but the right test sequence can keep the repair focused.
